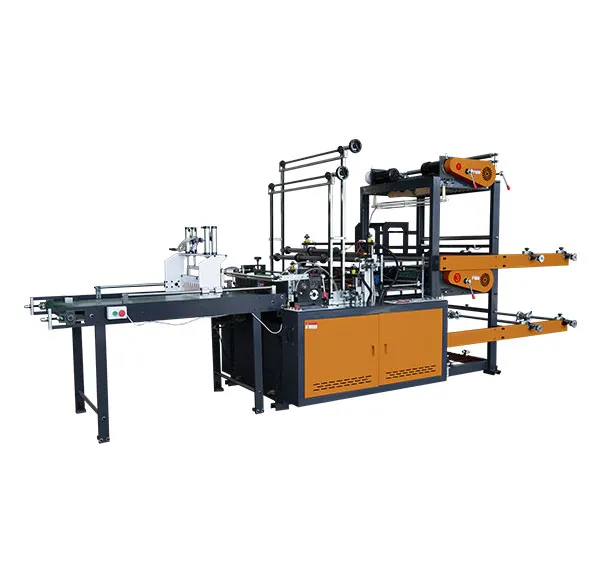

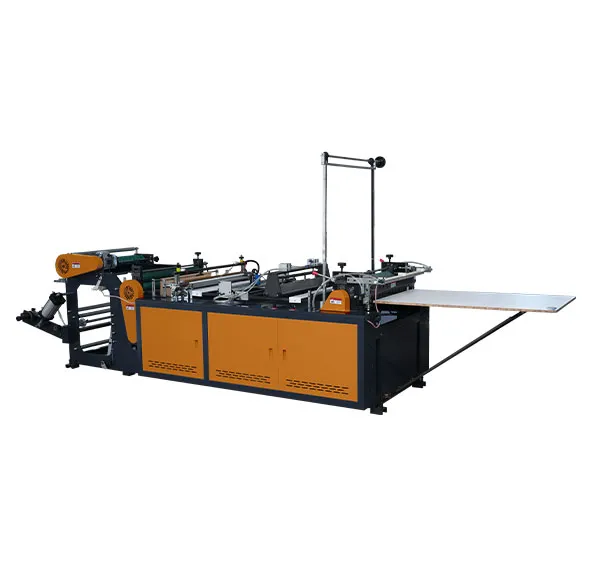

Hot-Seal Cold-Cut Bag Making Machine

Suitable for producing HDPE/LDPE flat pockets
  • Bag width
    50-1500mm
  • Bag length
    15000mm
  • Cutting thickness
    0.01mm-0.10mm
  • Production speed
    (10-150pcs)*2/min
GET IN TOUCH NOW
Downloads
Video
upload/1c/202509/supermarket-shopping-bags-8.jpg
upload/1c/202508/bag-making-machine-a3.jpg
upload/1c/202509/biodegradable-plastic-bags-3.jpg
upload/1c/202509/chongkoupingkou.jpg
upload/1c/202509/Two-color-plastic-bags-4.jpg
upload/1c/202508/bag-making-machine-a7.jpg
upload/1c/202509/courier-bags-4.jpg
upload/1c/202509/supermarket-fresh-keeping-bags-5.jpg

Product Description

A hot-seal cold-cut machine is a device commonly used in the packaging industry, mainly for sealing and cutting packaging materials such as plastic films.

Widely used in industries such as plastics and rubber, it features a relatively simple structure, low energy consumption, and easy operation, making it suitable for production scenarios where a high cooling rate of granules is required.

Product Parameters

model

600-1600 double layer

Electrical appliances

Chint

Maximum bag making width

500-1500mm

computer

zhongxing

Maximum bag length

1500mm

Tracker

longyou

Production speed

(10-150 pcs) * 2/min



Tracker

longyou



Cutting thickness

0.01mm-0.10mm

Temperature Controller

YKC

Overall size(L×W×H)

2400×1850×2200

Hot knife

copper knife for both

Flat bag and vest bag

Main motor

1.5kw

Cutter

1150mm,alloy steel

Frequency converter

1.5Kw

Electrostatic box

18kv

Feeding motor

DC motor

Electrostatic rod

1150mm4rods

Main feed

Stepper motor

hole puncher

optional

Unwind

2 mechanical axis

Pneumatic pressure feeding

optional

Product Features

  • Computer automatic control, automatic counting and counting alarm can be set, high efficiency, saving manpower and time;
  • From roll film to finished bag, it is fully automatic one-time completion;
  • The stepping motor has fixed length, photoelectric tracking, accurate and stable, and the feeding adopts photoelectric control;
  • Adopt heat sealing and cold cutting device, intelligent temperature control system to make the bag seal firm and smooth
  • The host adopts frequency converter to control speed

Product Details

upload/1c/202508/flat-bag-making-machine.jpg
Cold Press
upload/1c/202508/flat-bag-making-machine-2.jpg
Cold Sealing and Cutting Machine

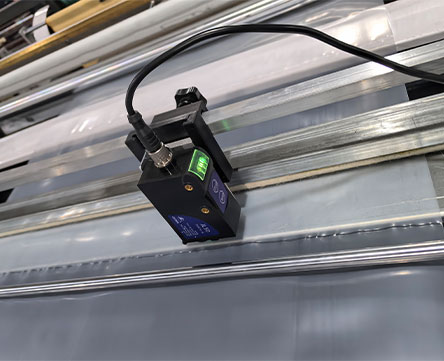

upload/1c/202508/flat-bag-making-machine-3.jpg
Color Code Tracking

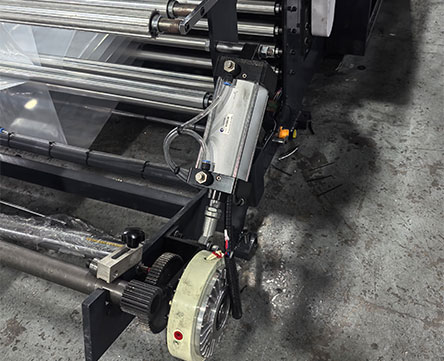

upload/1c/202508/flat-bag-making-machine-4.jpg
Magnetic Powder Brake
upload/1c/202508/flat-bag-making-machine-5.jpg
Pneumatic Feeding

FAQ

Find here Q&A related to Hot-Seal Cold-Cut Bag Making Machine customization, service, quality.

GET IN TOUCH

How can the production efficiency of bag-making machines be improved?

Select appropriate materials, set machine parameters reasonably, maintain equipment cleanliness, perform regular maintenance, and ensure operators are proficient in machine operation to effectively enhance production efficiency.

How should bag-making machines be maintained and serviced?

Regularly inspect and clean the machine, ensure proper lubrication of moving parts, replace wear-prone components (such as blades and seals) on a regular basis, and inspect the electrical system to ensure stable operation.

How long does it take to calibrate a bag-making machine?

Calibration time typically ranges from a few hours to one day, depending on the machine model and production requirements. Equipment setup and operator proficiency also affect calibration speed.

What is the production efficiency of a bag-making machine?

The production efficiency of a bag-making machine varies by model, typically reaching hundreds to thousands of bags per minute. Specific efficiency depends on the material used and the type of bag.

What materials are suitable for bag-making machines?

Bag-making machines are suitable for a variety of plastic film materials, such as polyethylene (PE), polypropylene (PP), composite materials, etc., and are widely used in fields such as food packaging and daily necessities packaging.
